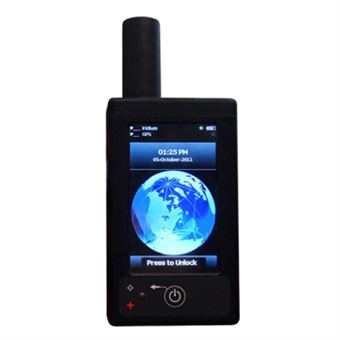

The SHOUT ts is our third-generation handheld satellite tracker and messaging device. It is the SHOUT nano with a touchscreen allowing quick access to the menus and ease of entering text via on-screen keyboards.
Similar to the nano, the ts is designed with ultra-low power consumption electronics drawing less than 35µA during sleep. With an internal 1.95 A-Hr rechargeable Li-Ion battery, it can send a position report every hour for up to two months (about 1,500 reports). The device can periodically wake up from sleep to send its position report to a command center. A guarded 911 button is used for immediate emergency/alert notifications. Data are packaged in either standard or 256-bit AES encrypted 10-byte, 30-byte or PECOS format.
Dimensions: 104 mm x 58 mm x 23 mm (4.1" x 2.3" x 0.9")
Weight: 204 g (7.2 oz)
Battery: Rechargeable Li-Ion
1.95 A-Hr Single Cell
3.6V to 4.2V
I/O Interface: Standard USB
Software Interface: AT Commands through USB
Operating Temp: -40°C to +85°C (-40°F to +185°F)
Operating Humidity: < 75% RH
Operating Frequency: 1616 to 1626.5 MHz
GPS Frequency: 1575.42 MHz (L1 carrier)
