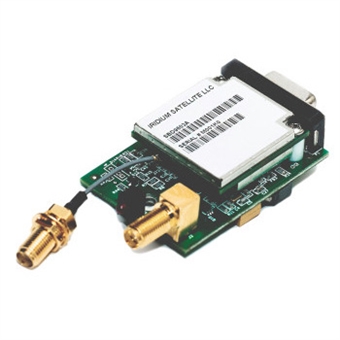

SBD Warrior

SATELLIGENT’s SBD WARRIOR allows users the ability to communicate globally in a variety of applications such as fleet & asset tracking, data telemetry or as a personal communication device. Featuring GPS, a high-performance 32 bit microcontroller, wide voltage range and ultra-low power consumption, the SBD WARRIOR can be effortlessly integrated into OEM products or can be used as a standalone device. Support for integrating the SBD WARRIOR into third party applications is provided through an extensive Application Programming Interface (API). Equipped with power and communication signals on a single DB15 female connector, the SBD WARRIOR offers the user an endless array of satellite telemetry applications.

    Features
  • Controller for Iridium® 9603 SBD transceiver
  • 48 channel SiRFstarIV™ chipset based GPS
  • Serial interface for 3rd party equipment or PC control
  • Wide supply voltage range (7– 28 VDC)
  • Fused 5V switched power output for external devices
  • Two 12 bit Analog to Digital (ADC) inputs
  • Two Digital I/O’s (configurable as panic input)
  • Transient voltage protection
  • Ultra-low standby power consumption (< 100 µA)
  • OEM and standalone versions available
  • Extremely small solution size (2L x 1.4W x 0.75H inch)
  • Easy integration into OEM products with a convenient DB15 interface
  • Application Programming Interface support through extended AT commands
  • 6 axes inertial sensor, comprising of a tri-axial accelerometer and gyroscope
