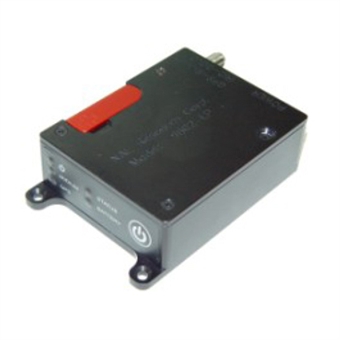

Model 9602-LP is an ultra-low power consumption Iridium satellite tracker. It can send either a standard or a 256-bit AES encrypted GPS report at a pre-programmed interval ranging from once every four seconds to once every seven days. The interval can be changed remotely while the unit is in the field.

The 9602-LP has the following features:
Standby current of less than 65µA
Wide input voltage range from 5V to 32V
Internal motion sensor
Two RS232 level I/Os for sensor interfaces
Seven TTL/CMOS level I/Os for sensor interfaces
GPS sensitivity of -160dBm
Programmed for either commercial or DoD gateway
Supports NAL Research and PECOS formats

Dimensions:    69 mm x 55 mm x 24 mm (2.73" x 2.17" x 0.94")
Weight:    136 g (4.8 oz.)
Input Voltage:    3.6V to 5.5V or 6.5V to 32V
Avg Current (Report):      200mA @ 5V Input
Avg Current (Sleep):    < 65µA @ 5V Input
I/O Interface:    15-Pin D-Sub
Antenna Interfaces:    SMA Female
Software Interface:    AT Commands through Serial
Operating Temp:    -40°C to +85°C (-40°F to +185°F)
Operating Humidity:    < 75% RH
Iridium Frequency:    1616 to 1626.5 MHz
GPS Frequency:    1575.42 MHz (L1 carrier)
